Fluent shelves

　　Basic Overview

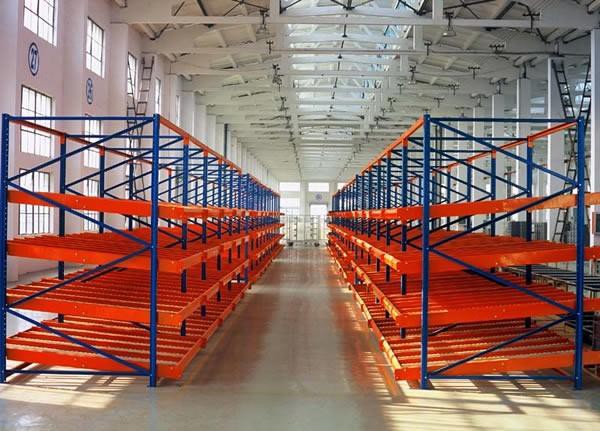

　　The roller rack, also known as sliding type rack, uses roller aluminum alloy, metal plate and other aluminum alloy sliding rails, and takes advantage of the dead weight of the goods carriage to store goods from the channel at one side and take delivery of goods from the channel at the other side, achieving first-in first-out, being convenient for storage, replenishing goods at one time and taking delivery of goods for many times. The roller rack has high storage efficiency and is suitable for storing and sorting a large number of goods for a short time. The roller rack can be equipped with the electronic label for easy management of goods. The commonly used sliding containers include turnover boxes, parts boxes and cartons, which are suitable for storing and sorting a large number of goods for a short time. The roller rack is suitable for storing and sorting a large number of goods for a short time. The roller rack is widely used in the distribution center, the assembly workshop and the warehouses with higher delivery frequency.

　　Structural Features

　　Structural features of roller rack: the aluminum alloy sliding rails of the roller rack are directly connected to the front and rear beams and the middle supporting beam, the structural beam of the roller rack is directly hanged on the supporting column, and the installation gradient of aluminum alloy sliding rails depends on the size and weight of packing boxes and the depth of aluminum alloy sliding rails, which is normally 5% to 9%. The bearing capacity of the roller for the aluminum alloy sliding rails is 6 kg/piece. When the goods is heavier, 3-4 aluminum alloy sliding rails can be installed on the roller track. Generally, one supporting beam is installed in the depth direction every 0.6 m to increase the rigidity of aluminum alloy sliding rails. When the roller track is long, it can be separated with the baffle plate. The brake disc is required to be installed at the pickup end to decelerate the goods and reduce the impact.

　　Characteristics and Features

　　1. The roller aluminum alloy sliding rails are used, and the dead weight of goods are utilized to realize goods first-in first-out.

　　2. The roller rack is convenient to store and deliver, and is suitable for the distribution center and other places at two sides of the assembly line.

　　3. The roller rack is applicable for storing a large batch of same type of goods, has high space utilization rate, and is particularly suitable for the automobile accessories plant.

　　4. The roller rack can be equipped with the electronic label to realize the informatization management of goods.

　　Scope of Application

　　Roller racks are widely applied in the manufacturing industry, the commercial field, the distribution center, the assembly workshop and the warehouses with high delivery frequency. The roller rack adopts roller aluminum alloy sliding rails and utilizes the dead weight of goods to realize goods first-in first-out. The roller rack is convenient to store, and is suitable for use in the distribution center and other places at two sides of the assembly line.
