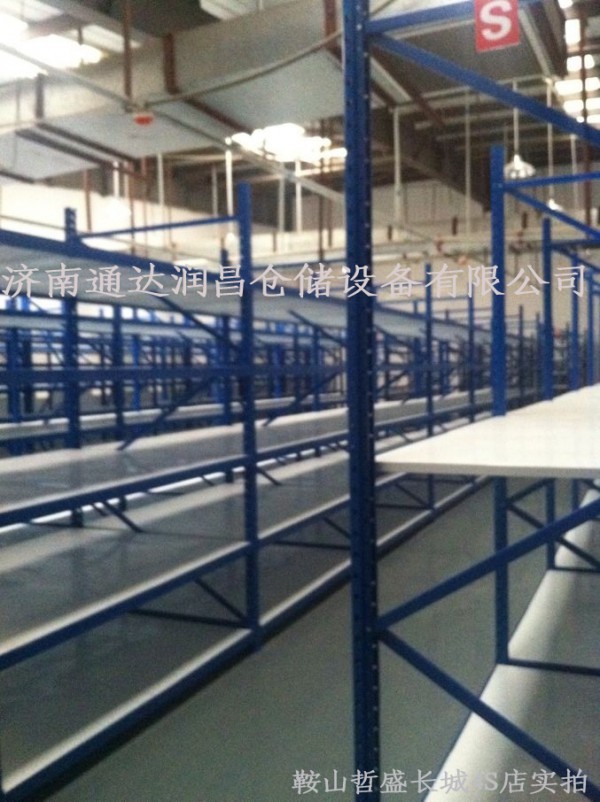

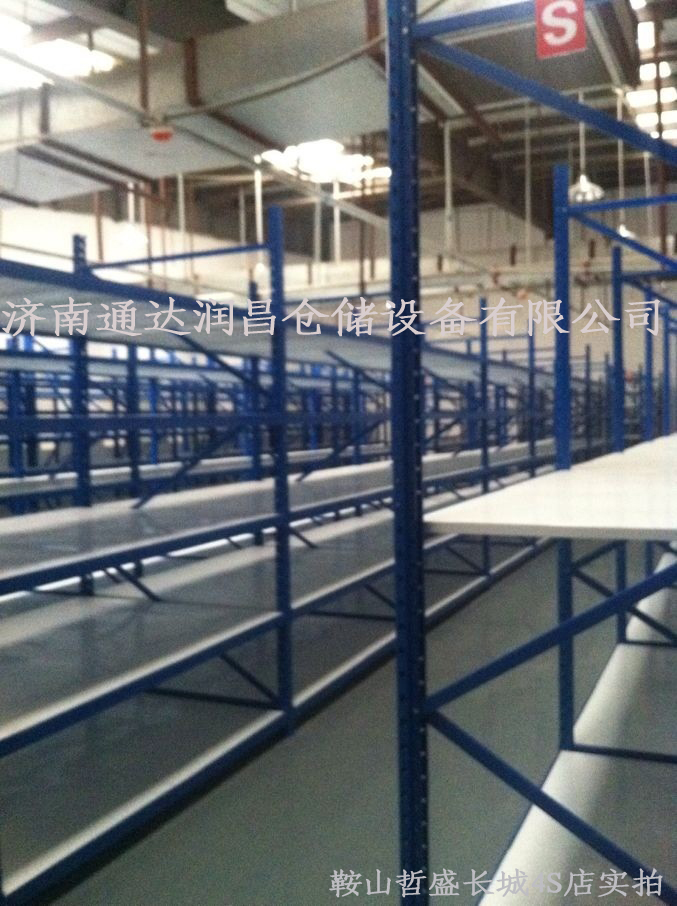

    The middle-sized rack is one of warehousing racks: shelf. The middle-sized rack is differentiated and named according to the bearing capacity of the rack. Based on this classification principle, the middle-sized rack is between the light-duty angle steel rack and the heavy-duty beam rack, so it is named middle-sized rack. The bearing capacity of the middle-sized rack is 150 to 500 KG/layer.
  Application scope of middle-sized rack: the middle-sized rack is solid, has large bearing capacity and is widely applied to shopping malls, supermarkets, enterprise warehouses and public institutions.
  Material
  The middle-sized rack is mainly composed of upright columns, beams, pallets and veneers, is characterized by easy connection, assembly and disassembly (assembly/disassembly can be performed with the rubber hammer) and beautiful appearance, and is applied to manual goods storage and delivery. The bearing capacity is generally 200 KG to 400 KG per layer, meeting most of operating requirements. The main components of the middle-sized rack, veneers, are formed by working cold plates and can be adjusted vertically at the spacing of 50 mm. To facilitate the operator to store and deliver the goods, the total height of the rack is usually not more than 2 m. If the climbing equipment is used, the rack height can reach 3 meters at most. If it is separately used, it can be spliced into various arrangements. The middle-sized rack adopts the combined design, is very convenient to transport, is time-saving and labor-saving to displace and handle and has the advantages that the traditional welded rack cannot replace. All middle-sized rack products pass through the strict room temperature bearing test.
  Structure
  1. The upright columns of the middle-sized rack are made of cold-rolled steel sheets roll-formed by the cold bending molding set. Double rows of holes are punched on the front of the upright column of the middle-sized rack and are arranged at the spacing of 50 mm. The holes for the upright columns of the rack are used for hanging the beam. Two upright columns of the rack are opposite, and the transverse connecting pipe and the inclined connecting pipe are arranged between the upright columns to assemble the two upright columns into the upright column of the rack.
  2. The beam of the middle-sized rack made of P-shaped pipes is commonly known as the stair beam, and the height of the stair is matched with that of the veneer of the middle-sized rack.
  3. The steel veneer of the middle-sized rack is made of cold-rolled steel sheets completely bent and formed on four sides at one time according to the required sizes.
  4. The beam of the middle-sized rack and the upright column of the rack are hooked to be assembled into the rack frame, and finally the steel veneer is laid to form a complete set of middle-sized rack.
  5. After being processed and molded, all components of the middle-sized rack are processed by polishing, pickling, parkerizing, automatic electrostatic powder coating, drying and other processes and then assembled into the finished product. The surface of the finished middle-sized rack product is smooth and beautiful.
  6. The layer height of the middle-sized rack can be vertically adjusted at the minimum pitch of 50 mm, so the rack is convenient to assemble and disassemble.
  Manufacturing flow of middle-sized rack: processing and molding→polishing→pickling→parkerizing→automatic electrostatic powder coating→drying
  Instructions for main rack and auxiliary rack of middle-sized rack
  Middle-sized rack is composed of upright columns, beams and veneers, and an independent set of rack has two upright columns, which is called main rack.
  If several sets of racks are assembled into one row, except the first set of rack which needs two upright columns, other sets of racks can share one upright column with the previous set of rack. This kind of rack is called auxiliary rack. It not only saves space, but also reduces cost.
  If the rack is required to be moved frequently, it is recommended to use main rack only. The rack in which the main rack is connected with the auxiliary rack must be moved along with the main rack.
  Main rack: two upright columns (one upright column: two upright column plus several cross ties and diagonal ties)
  Beam (two beams on one layer)
  Veneer (the veneer is placed on two beams)
  Auxiliary rack: one upright column (one upright column: two upright column plus several cross ties and diagonal ties)
  Beam (two beams on one layer)
  Veneer (the veneer is placed on two beams)
